Silicone Cover for Various Types of Indoor Terminations IBK

Silicone Cover for Various Types of Indoor Terminations IBK 2018-05-23T21:55:06+00:00

Project Description

In some switchgears, due to the small space or the designed bushing type, it is not feasible to connect the termination in the usual way, and if no cover is used, the phase to phase or phase to earth fault may occur. For this reason, given the type of design and method of connection of termination, two straight and elbow cover types are used to protect the phase and remove the above-said obstacles.

Specifications

  • Made with silicon materials
  • Reusable
  • Easy installation without any need for tools or heating
  • High temperature tolerance
  • Non-flammable
  • No toxic gas is produced when burned
  • Ideal supplement for indoor terminations
Recommended Minimum for Phase-Phase or Phase-Earth Clearance
Umax (kV) Insulation level (kV) A B C D E
12 75 50 10 90 20 470
24 125 110 50 130 50 570

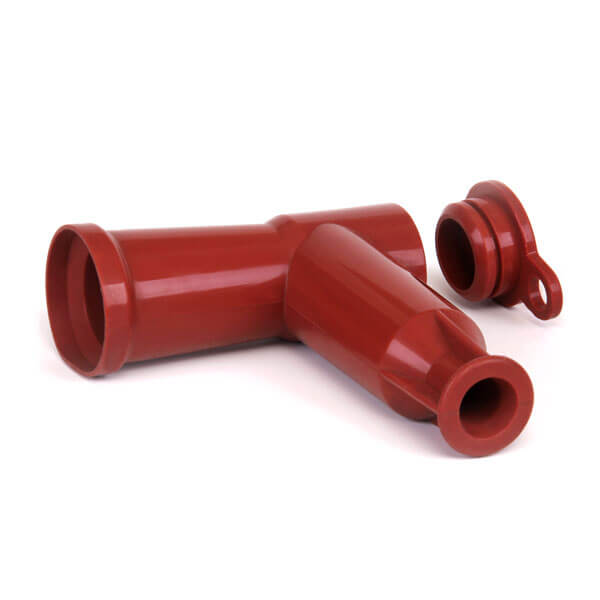

No. Description Code Size (mm)
1 Straight IBKS 300 25 – 300
2 Elbow IBKR 300 25 – 300
