Low Voltage Resin Cable Joint CM

Low Voltage Resin Cable Joint CM 2018-05-23T21:17:42+00:00

Project Description

Such joints are suitable to be installed on PVC-PE cables with different number of cores. They cover a cross-section of 2.5 to 300 square millimeters and are used for various types of armored and non-armored cables. Their consumption time is two years from the date of production and they are produced according to CENELEC HD 623 standard.

  • Resistant to UV radiation
  • Small dimensions and easy installation
  • 100% Sealing
  • Used in wells and underwater (river, pool)
  • Indoor space
  • Outdoor space
  • Underground
  • Inside cable tray or duct
  • Resin case

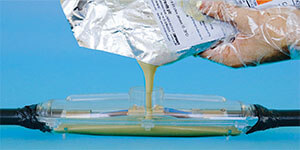

  • Two-part resin
  • Ferrule
  • Installation manual
  • Armor earth kit (if needed)
Withstand Voltage:
U0/UN (UM) 0.6/1 (1.2) kV
Maximum final length (mm) Cable cross-section (mm2) Code Uo
(kV)
Un
(kV)
Um
(kV)
1345 2.5 – 300 CM – SY 0.6 1 1.2
For instance: 3×25+16 low voltage cable resin joint with copper conductor CM – 3X25+16 CU
S = number of cores and cable cross-section (mm2)
Y= (A1/Cu/BI) Type of ferrule
