Compact Heat Shrinkable Indoor Three Core Cable Termination HCK–3I

Compact Heat Shrinkable Indoor Three Core Cable Termination HCK–3I 2018-05-23T21:30:11+00:00

Project Description

These cable terminations are suitable to be installed on three-stranded cables and are used in indoor spaces where they have no direct contact with wind, rain or snow.

  • Room temperature ranging from -40 to +105 °C
  • Cross-linked insulation
  • Flame retardant
  • Easy installation
  • In accordance with CENELEC HD 629.1S1, DIN VDE 0278, IEC60502-4 Standard
  • With UV protection layer
  • With unlimited lifetime / energized as soon as it is installed on the cable
  • Suitable for small spaces

To order a cable with specific cross section and conductor type, you can act as follows at the time selecting the code.

For instance:

Indoor three core cable termination for a voltage of 24kv with 185 mm2 cross section and PHCK – 3I24 – 185Cu copper cable lug

  • Insulating tubing
  • Stress control tubing
  • Yellow tape
  • Red tape
  • Medium voltage cable lug
  • Earth cable lug
  • Cable breakout
  • Installation manual
  • Rain shed
  • Armor kit (if the cable is armored)
  • Earth kit (if the earth is tape shield)
  • Angle boot (if needed based on the specifications of the electrical panel)

PHCK – 3I cable terminations have all the properties of PHSK – 3I cable terminations. The difference is that they are designed and manufactured in smaller scales and are used for electrical panel with small dimensions or electromotor cable box that are built to meet IP55 or higher standards and have small space for installation of cable termination.

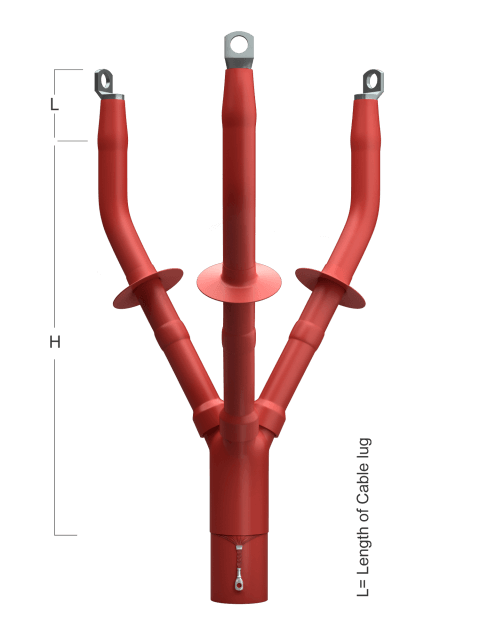

X = cable cross-section (mm2)
Y= (A1/Cu/BI) Type of cable lug
Length (mm) (H) Cable cross-section (mm2) Code Uo
(kV)
Un
(kV)
Um
(kV)
350 6 – 400 HCK – 3I03 – XY 1.9 3 3.3
350 6 – 400 HCK – 3I07 – XY 3.3 6 7.2
380 10 – 400 HCK – 3I12 – XY 6 10 12
420 10 – 400 HCK – 3I17 – XY 7.2 11 17.5
520 10 – 400 HCK – 3I24 – XY 12 20 24
650 10 – 400 HCK – 3I36 – XY 19 33 36
