Armored Heat Shrinkable Low Voltage Joint with Armor Case HJC

Armored Heat Shrinkable Low Voltage Joint with Armor Case HJC 2018-05-23T21:20:38+00:00

Project Description

Such joints are suitable to be installed on PVC-PE cables with different number of cores. They cover a cross-section of 2.5 to 1200 square millimeters and are used for various types of armored and lead cables. Their consumption time is unlimited and they are produced according to CENELEC HD 623 standard.

  • Resistant to UV radiation
  • Small dimensions and easy installation
  • 100% Sealing
  • Indoor space
  • Outdoor space
  • Underground
  • Inside cable tray or duct

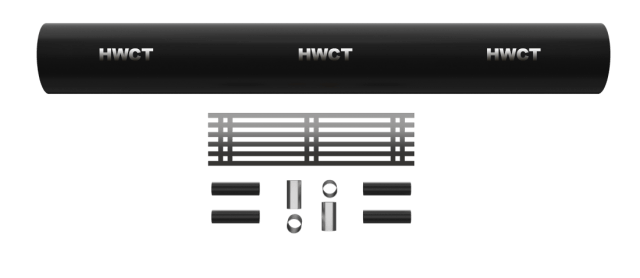

  • Jacketing tubing
  • Internal tubing
  • Ferrule
  • Installation manual
  • Armor case
Withstand Voltage:
U0/UN (UM) 0.6/1 (1.2) kV
Maximum final length (mm) Cable cross-section (mm2) Code Uo
(kV)
Un
(kV)
Um
(kV)
1200 2.5 – 1200 HJC – SY 0.6 1 1.2
For instance: 3×25+16 low voltage armored cable joint with copper conductor HJC – 3X25+16 CU
S = number of cores and cable cross-section (mm2)
Y= (A1/Cu/BI) Type of ferrule
