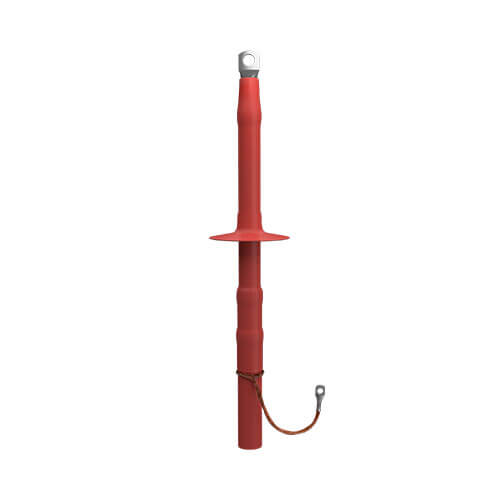

Very Heavy Pollution Indoor Single Core Cable Termination HHK 1i
Download product PDF (Persian)
An engineered cable termination system selected according to rated voltage, cable insulation, conductor size, screen construction, installation environment, altitude and pollution severity.
Technical specifications
| Length H (mm) | Cable cross-section (mm²) | Part number | Uo (kV) | Un (kV) | Um (kV) |
|---|---|---|---|---|---|
| 150 | 6 – 1200 | HHK – 1I03 – XY | 1.9 | 3 | 3.3 |
| 150 | 6 – 1200 | HHK – 1I07 – XY | 3.3 | 6 | 7.2 |
| 270 | 10 – 1200 | HHK – 1I12 – XY | 6 | 10 | 12 |
| 340 | 10 – 1200 | HHK – 1I17 – XY | 7.2 | 11 | 17.5 |
| 340 | 10 – 1200 | HHK – 1I24 – XY | 12 | 20 | 24 |
| 430 | 10 – 1200 | HHK – 1I36 – XY | 19 | 33 | 36 |
X = Cable cross-section; Y = Cable lug or connector type: Al = Aluminium, Cu = Copper, Bi = Bimetal.
