Project Description

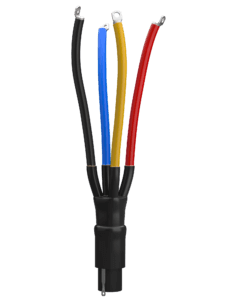

These cable terminations are suitable to be installed on PVC-PE cables with different number of cores. They cover a cross-section of 2.5 to 1200 square millimeters and are used for various types of non-armored cables. Their consumption time is unlimited and they are produced according to CENELEC HD 623 standard.

  • Tubing for cable core
  • Cable breakout
  • Earth connections (if needed)
  • Installation manual
  • Cable lug
  • Resistant to pollution
  • Resistant to UV radiation
  • Small dimensions and easy installation
  • 100% Sealing
  • Use of one cable termination for open (outdoor) and closed (indoor) spaces
  • Indoor space
  • Outdoor space
  • 1 kV cable termination does not have rain shed
Withstand Voltage:
U0/UN (UM) 0.6/1 (1.2) kV
Minimum final length (mm) Cable cross-section (mm2) Code Uo
(kV)		 Un
(kV)		 Um
(kV)
250-650 2.5 – 1200 HTM – SY 0.6 1 1.2
For instance: 3×25+16 low voltage armored cable joint with copper conductor HTM – 3X25+16 CU
S = number of cores and cable cross-section (mm2)
Y= (A1/Cu/BI) Type of ferrule
